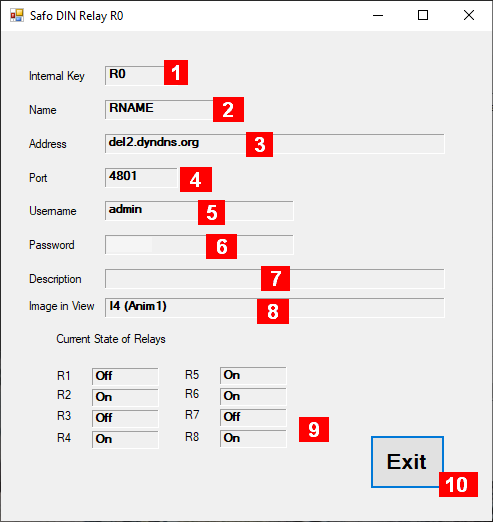

The following window is displayed to show detailed information about one particular DIN Relay or Web Switch (there is not difference from the software perspective of these devices):
Details about the fields in this panel:
-
Internal Key – a unique identifier maintained by the system
-
Name – an acronym maintained by the user
-
Address – URL of the website of the DIN/WS server
-
Port of the website of the DIN/WS server
-
Username to access this website
-
Password to access this website
-
Description – some information maintained by the user
-
Image in View – a reference to an image to be used to show the state of individual relays
-
Current state of all relays (shown only when address, username and password are provided)
-
Exit to close this window.
The state of each of the individual relay can be one of the following:
-
Off – relay is in off position
-
On – relay is in on position
-
Pending – a change of state has been sent to the relay but change has not been confirmed yet
-
Unknown – No response has been received to get the state of the relay
