4.2.9 Temperature File Group

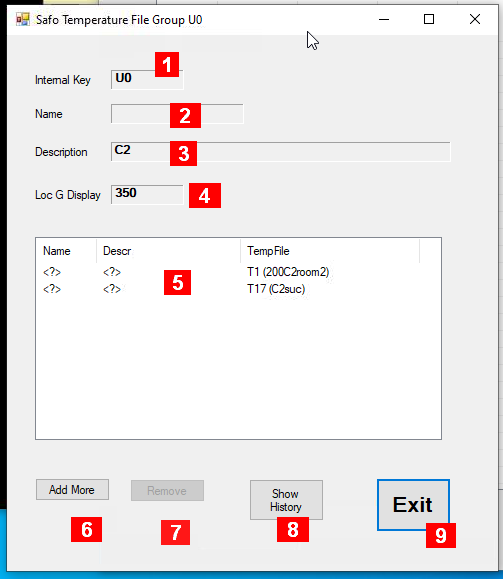

The following window is displayed to show detailed information for a Setup of a Special Object:


Details about the fields in this panel:

  1. Internal Key – a unique identifier maintained by the system

  2. Name – an acronym maintained by the user

  3. Description – some useful information maintained by the user

  4. Loc G Display – the location of this graph if displayed together with other graphs in one window

  5. List of temperature files to be displayed graphically in this group (click on line to change contents of this line)

  6. Add More – adds one more line in the list of temperature files

  7. Remove – remove selected line from in the list of temperature files

  8. Show History – opens a window displaying the history of the temperature values

  9. Exit – closes this window.
